Best Kidney Stone Imaging Methods Explained

Understanding your options for kidney stone imaging can be the difference between effective treatment and months of frustration. In this blog, I break down the four most common imaging methods—CT scans, ultrasounds, X-rays, and MRIs—and explain the pros and cons of each. I also share the best choice depending on whether you're a first-time stone former or someone dealing with recurring stones.

Key Takeaways:

• CT scans offer the most accurate detection and density analysis

• Ultrasounds are safer but less reliable

• X-rays are inexpensive but can miss common stones

• MRIs are radiation-free but costly and not standard for stones

When you show up at the ER or your urologist’s office with suspected kidney stones, one of the first steps is imaging. But what kind of imaging you get can drastically shape your experience.

Why? Because some tests give you all the information you need to make the right treatment decision—and others leave you guessing.

Let me walk you through the four main kidney stone imaging techniques so you know exactly what to ask for.

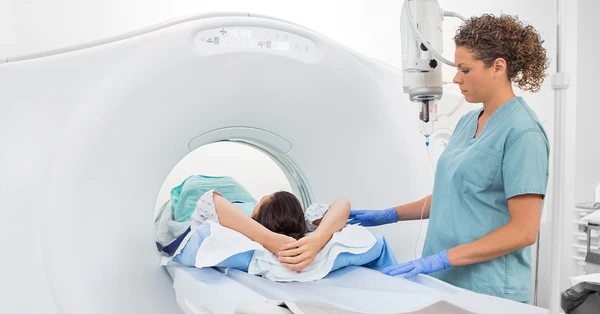

CT Scans: The Gold Standard for Kidney Stone Detection

A CT scan—or CAT scan—is considered the most powerful and accurate imaging tool for kidney stones in the U.S.

It gives you 3D images and offers incredibly high diagnostic accuracy:

• Sensitivity: 95–99% (ability to detect stones when they are present)

• Specificity: 94–98% (ability to rule out stones when they’re not present)

That level of detail is critical because the urinary tract is complex. Being able to see everything in 3D helps guide your treatment plan.

Another big win with CT scans? Stone density.

CT scans measure Hounsfield units, which tell you how dense a stone is. That’s huge. Because certain treatments—like natural anti-lithic supplements—only work well on low-density stones. Without this density info, you’re flying blind.

But there are tradeoffs:

• Radiation exposure: A standard non-contrast CT delivers about 10 millisieverts. That adds up over time.

• Cost: About $1,000 per scan in the U.S.

• Not ideal for obese patients if using low-dose CT due to image quality limitations

Still, for first-time stone formers, I always recommend getting a CT scan. It sets the foundation for everything else.

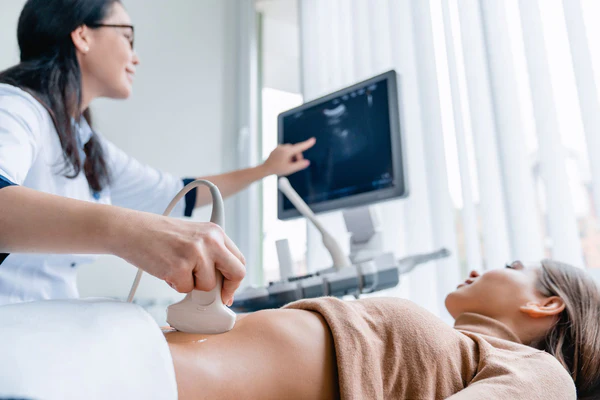

Ultrasound: Low Cost, No Radiation, Limited Detail

Most of us are familiar with ultrasounds from pregnancy or other abdominal exams. For kidney stones, they’re popular because they’re safe and accessible.

Pros:

• No radiation exposure

• Lower cost (~$400 average in the U.S.)

• Widely available in clinics and ERs

Cons:

• Low sensitivity (~45%)

• 2D imaging only—can’t give diameter (which is the most important metric when deciding if a stone can pass)

• Doesn’t detect all stone types reliably

• Struggles with obese patients (BMI > 30) due to tissue interference

For recurring stone formers, ultrasounds are a solid option for follow-ups. You already know your stone type and density, so you just need to locate the stone and assess kidney health.

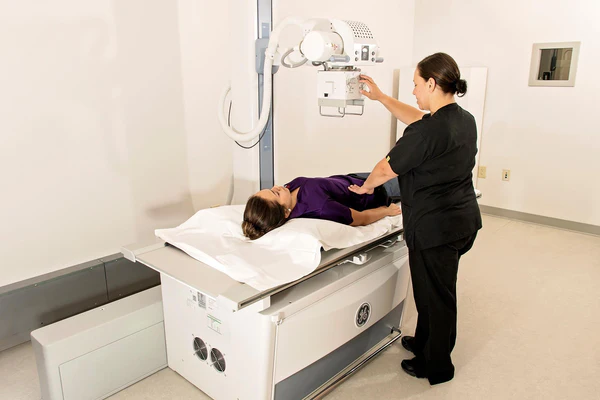

X-Rays: Inexpensive but Very Limited

X-rays are another familiar tool, but their use in kidney stone detection is very limited.

Their accuracy is only:

• Sensitivity: 57%

• Specificity: 76%

They only offer 2D images, and worse, they can completely miss certain stone types like:

• Cystine stones

• Struvite stones

• Uric acid stones (which account for 10% of all kidney stones!)

Pros:

• Lower radiation (~2.15 millisieverts)

• Cheap (~$275 average in the U.S.)

But honestly, the inability to see uric acid stones is a major red flag. That makes X-rays a poor choice in most kidney stone cases.

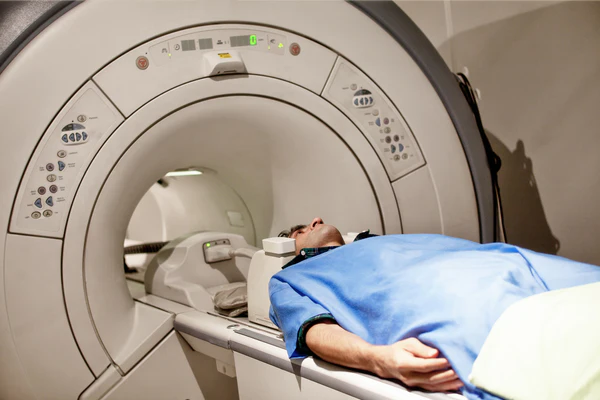

MRIs: Radiation-Free but Not Common for Stones

MRI stands for Magnetic Resonance Imaging. Instead of using radiation, MRIs use magnetic fields to map the body.

Pros:

• No radiation exposure

• Can generate 2D or 3D images

• Better accuracy than ultrasound or X-ray

Cons:

• Expensive (~$2,500 average in the U.S.)

• Not commonly used for kidney stones

• Less effective for detecting stone composition and density

While it’s a great imaging tool for many conditions, MRI is not the standard for kidney stone detection because CT scans are cheaper and more accurate for this purpose.

Comparing the Four Imaging Options

Here’s a side-by-side snapshot to help clarify:

What to Do Based on Where You Are in Your Kidney Stone Journey

First-Time Kidney Stone Formers:
Go with a CT scan.

You want all the details—especially the stone density. That way you’ll know whether:

• You’re a candidate for natural stone dissolution

• Your stone is likely to pass

• You’ll form the same stone type again

And if you pass the stone, you’ll still benefit from the CT scan's density info.

Recurring Kidney Stone Formers:
Go with an ultrasound (if you’re not obese).

You already know your stone type and composition from past experience. With ultrasound, you can:

• Locate the stone

• Estimate its size

• Evaluate kidney function (like hydronephrosis)

This saves you radiation and money while still giving you what you need to take action.

Final Thoughts: CT First, Then Ultrasound

The bottom line is this:

• For first-time stone formers, get a CT scan

• For recurring stones, ultrasound is usually enough

• X-rays and MRIs? Only in specific cases—and they come with limitations

Knowing your imaging options—and when to use them—can make all the difference in managing your kidney stone experience.

Get the info. Make a plan. And take control of your health.
